STRAIGHT LINE RAZOR WIRE FENCE

Straight line razor wire mesh is made of blade type barbed wire straightened for easy and quick installation. It makes offer ideal fencing top lines for frightening for the common metal wire fences.

razor concertina wire includes spiral razor wire and straight razor wire.

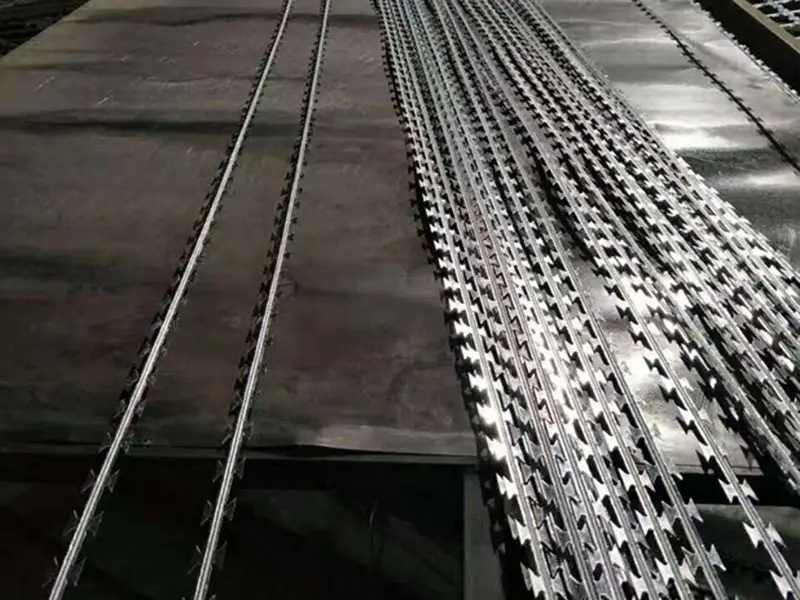

Straight Razor Wire
Hot dip Galvanized - suitable for offshore purpose

CBT 65 razor wire in straight lengths

Features: Corrosion resistance, anti-aging, weather resistance, etc.
The forms of corrosion resistance include electric galvanizing and hot dipped galvanizing.

Specification: The blade length, wire diameter, thickness can be custom made.
Straight line razor wire common sizes:

A1: Blade thickness: 0.5mm; core diameter: 2.5mm; blade length: 10mm; blade width: 13mm; blade distance: 26mm
A2: Blade thickness: 0.5mm; core diameter: 2.5mm; blade length: 20mm; blade width: 15mm; blade distance: 33mm
A3: Blade thickness: 0.5mm; core diameter: 2.5mm; blade length: 15mm; blade width: 15mm; blade distance: 33mm
A4: Blade thickness: 0.5mm; core diameter: 2.5mm; blade length: 22mm; blade width: 16mm; blade distance: 36mm
A5: Blade thickness: 0.6mm; core diameter: 2.5mm; blade length: 65mm; blade width: 22mm; blade distance: 102mm

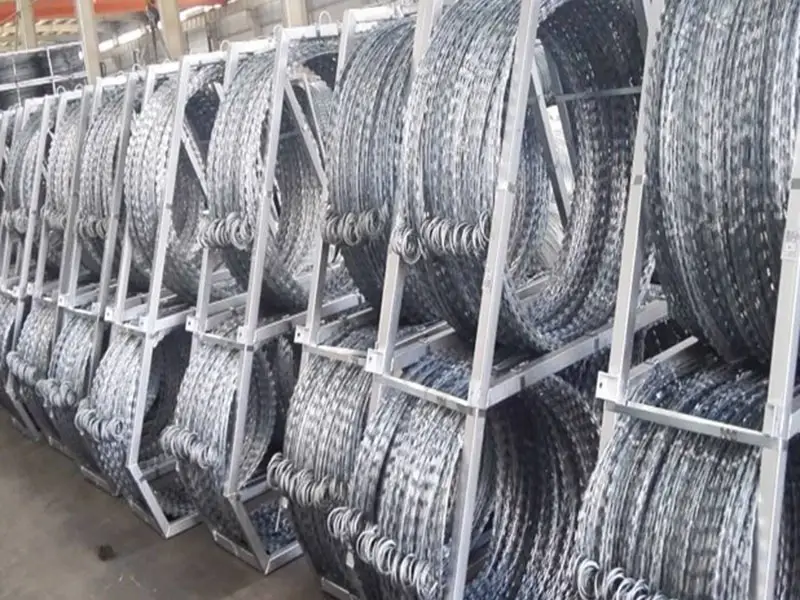

galvanized razor wire (3.6kg/roll) #cbt65
razor wire cbt-65 - electro galvanized zinc
450mm diameter and 28 rings
straight length 46.5 mt per roll after pull open
standard covered length 7.5 mt
3.6kg/roll 5roll/ctn

Straight Razor Wire, also called as the razor stinging, razor wire, is a new type of fence. Straight Razor Wire with beautiful, economical and practical,good prevention effect, convenient construction and other excellent characteristics. It can be made into different crossed type in different diameter and widely used in high wall Or bounding wall, it has good effect on insulating and protecting.

Reference Number	Thickness	Wire Dia	Barb Length	Barb Width	Barb spacing
BTO-10	0.5±0.05	2.5±0.1	10±1	13±1	26±1
BTO-12	0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-18	0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22	0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-28	0.5±0.05	2.5	28	15	45±1
BTO-30	0.5±0.05	2.5	30	18	45±1
CBT-60	0.5±0.05	2.5±0.1	60±2	32±1	100±2
CBT-65	0.5±0.05	2.5±0.1	65±2	32±1	100±2
