CBT-60 CONCERTINA BARBED TAPE RAZOR WIRE

Date: 2024-11-27 Views: 20

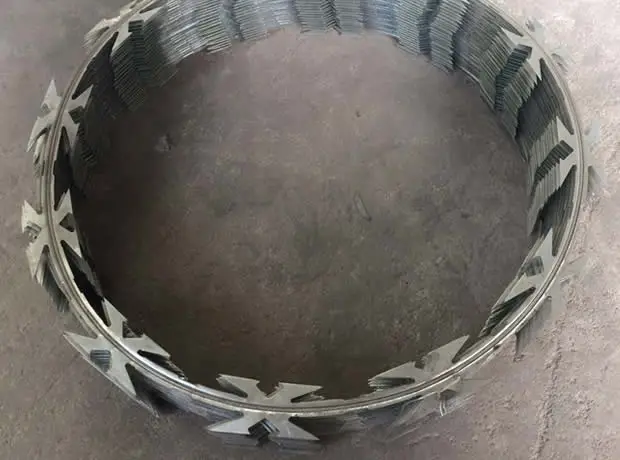

CBT-60 concertina razor wire-Concertina Barbed Tape (CBT),Blade Length is 60±1mm.

razor wire is divided into welded razor wire, straight razor wire, flat razor wire, andspiral razor wire, which have different shapes and different applicable ranges.

Model	Blade Thickness	Core Wire Diameter	Blade Length	Blade Width	Blade Space
CBT-60	0.6 ± 0.05 mm	2.5 ± 0.1 mm	60 ± 1 mm	32 ± 1 mm	96 ± 1 mm

Blade Type	Notes	Outside Diameter	Standard Length per Coil	No.of Loops
CBT-60	Single Coil	450mm	7M-8M	33
CBT-60	Single Coil	500mm	12M-13M	56
CBT-60	Single Coil	700mm	13M-14M	56
CBT-60	Single Coil	960mm	14M-15M	56

Material: galvanized
Surface Treatment: galvanized
Type: Barbed Wire Coil
Razor Type: Cross Razor
Packing: Waterproof Paper +Woven Bags
Weight: 7kg/roll-10kg/roll
Length: 7m-10m/roll
Diameter: 450-1000 Mm
Razor Thickness: 0.5mm-0.6mm +/-0.05mm
Color: Silver
Zinc Coated: Galvanized Wire:8-60g/m2
Feature: Great Protection

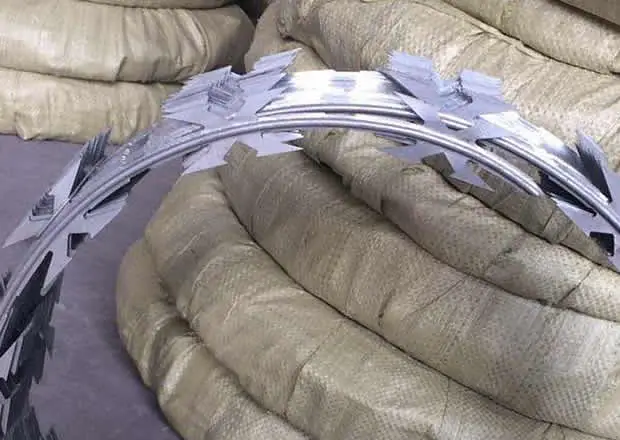

Concertina hot dipped galvanized razor barbed wire

GI, CBT, MBBT
0.60mm thick blade
600-540mm coil dia (before & after stretching)
2.50mm diameter G.I wire (high tensile)
12m roll length
Packaging: standard seaworthy packing, big coils (coil tied at 4 intervals with wire or cordstrap and then rapped with clear plastic and outside woven bag) 500 kgs coil only. Each coil must include 3 stickers specifying coil net weight, coil gross weight, coil number and wire diameter.

CBT60 Singl type 7M-8M per coil 33 loop Blade Thickness 0.6±0.05mm
Galvanized or stainless steel Concertina (razor) wires:
Option 1:
Roll Diameter: 60 cm
Roll Length: 15 m
Thickness/blade: 0.5 mm
Wire diameter: 2.6 mm
Quantity of zinc: 40-50 G/m2
Stretching/resistance: 800-1000 Mpa
Option 2:
Diameter: 100 cm
Length: 15 m
Thickness/blade: 0.5 mm
Wire diameter: 2.6 mm
Quantity of zinc: 40-50 G/m2
Stretching/resistance: 800-1000 Mpa
