GALVANIZED RAZOR BARBED WIRE

For Galvanized razor barbed wire, we have many kinds: Single coil Razor Wire, Crossed Razor Wire, Flat warp razor wire, Razor Wire fence.

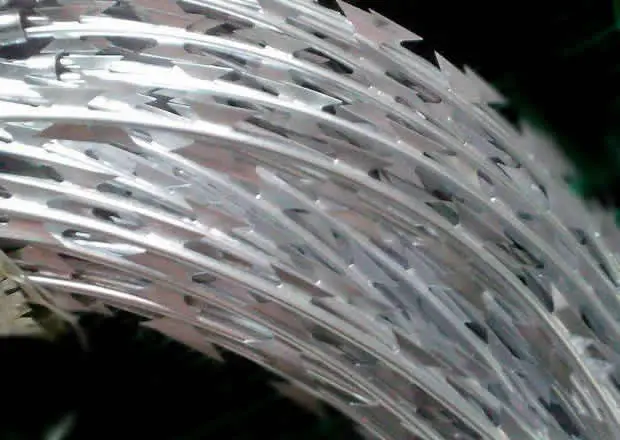

Galvanized Single Coil Razor Wire

Single coil Concertina Wire is installed without clips, it runs in natural loops on walls.Cost less and can be easily installed.

Galvanized Crossed Razor Wire

Two pieces of razor wire were bounded together by clips to make it more strength.The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.

Galvanized Razor Wire Fence

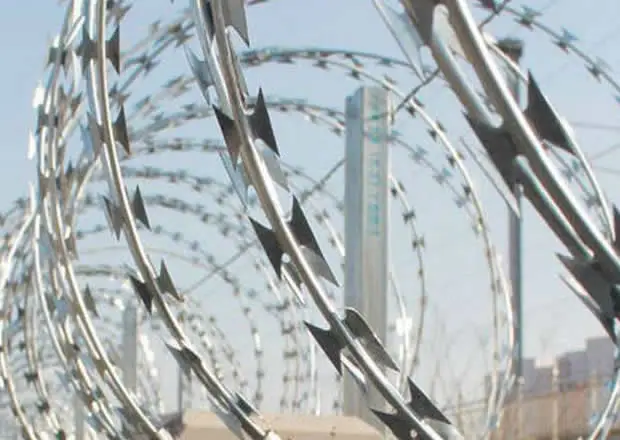

Welded razor mesh fence is a new form of razor bared wire mesh for security,it with practicality blade and the feature looks very beautiful.It can be used for guard fence ,doors and windows and also can be used in military.The specification can be designed as the customers' need.

Anti-rust Hot Dipped Galvanized Razor Barbed Wire

Product Description

Material: Hot Dipped Galvanized sheet Hot Dipped Galvanized Wire
Core Wire Diameter: 2.7±0.1mm
Razor Barbed sheet thickness: 0.5±0.05mm
Razor Loop Diameter: 300mm, 400mm, 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm. 450mm(3 clips), 500mm(3 clips), 900mm(5 clips) are the usually sizes
Razor Barbed Wire per coil weight: Be produced as customers requirements.
Meters of per coil Razor Barbed Wire: the greater the stretch strength, the greater the distance between them.

Material	High quality low carbon steel wire,Iron wire,etc
Category	1,Hot dipped galvanized 2,Electric galvanized 3,PVC coated
Weving and Characteristic	Twist weaving,firm and beautiful,corrosion-resisting and oxidation-resisting
Using	Used as barrier for lawn,railways,expressways ,etc

Hot dip galvanzied razor blade concertina razor barbed wire security fencing

Material: high-quality low medium-carbon steel belt, stainless steel belt. razor-sharp steel blade, high-tensile wire
Blade thickness: 0.5+/-0.05mm
Coil diameter: 2.5+/-0.1mm
Blade length: 10mm, 12mm, 15mm, 18mm, 22mm or others
Process: blunt rolling.
Barbed type concertina (CBT); Barbed type obstacle (BTO)
Sort of razor wire: single loop razor wire, concertina razor wire, welded razor wire (razor wire mesh), flat razor wire.
Features: excellent protective performance, beautiful, variety, construction rapidly and the effect of deter is good, extremely
difficult to cut (high tensile core wire), hard to climb, height of 1.2, 1.8, 2.1, and 2.4 meters, does away with the need for a
fence topping.

BTO-22 Galvanized Steel Military Concertina Razor Wire Barbed wire
Specification

Item	Value
Model Number	BTO 22
Material	HIGH TENSILE
Surface Treatment	GALVANISED
Type	Barbed Wire Coil
Razor Type	BT0 22

Galvanized steel sheet concertina razor barbed wire

Gauge of Strand and Barb in B.W.G.	Approximate Length per Kilo in Meter
	Barbs Spacing 3"	Barbs Spacing 4"	Barbs Spacing 5"	Barbs Spacing 6"
12x12	6.0617	6.7590	7.2700	7.6376
12x14	7.3335	7.9051	8.3015	8.5741
12-1/2x12-1/2	6.9223	7.7190	8.3022	8.7221
12-1/2x14	8.1096	8.814	9.2242	9.5620
13x13	7.9808	8.899	9.5721	10.0553
13x14	8.8448	9.6899	10.2923	10.7146
13-1/2x14	9.6079	10.6134	11.4705	11.8553
14x14	10.4569	11.6590	12.5423	13.1752
14-1/2x14-1/2	11.9875	13.3671	14.3781	15.1034
15x15	13.8927	15.4942	16.6666	17.5070
15-1/2x15-1/2	15.3491	17.1144	18.4060	19.3386

Packing: Bulk, simple packing and carton packing.

Simple packing: inside is water proof paper and outside is woven bags and then compression.

Carton packing: razor mesh coils are loading into hard cartoon boxes
