PVC Coated Concertina Wire
The PVC Concertina Razor Wire or Powder Coated Razor Wire is formed by the rust protection processing after the manufacture of the razor wire with sheet razor. The periphery of the barbed wire with plastic paint should have good anti-rust function, the periphery processing should be beautiful, and can be of good practical value. It is more convenient to install and more cost-effective.
The PVC Concertina Razor Wire or Powder Coated Razor Wire on the blade is applied to the surface of the blade.Plastic paint is often see way of electrostatic daub, can be fixed on the periphery of the razor wire or iron wire board, requires two hot-diped after heat treatment, make plastic paint or powder coating adhesive on the steel plate, plastic paint surface look overall feeling is very good, strong adhesive force, at the same time is more durable, coating processing up too long, mainly anti-rust anti-corrosion effect is quite good, is better than general materials.
razor wire material of stainless steel or hot-galvanized makes sure for long life and low maintenance, the barbed tapes are able to be fitted to walls, fences or eaves without the need for heavy duty straining post, supports or cautionary wires,high quality whilst retaining high security,allowing repairs to be carried out without compromising perimeter security.
| Spec | Thickness (mm) | Wire Dia. (mm) | Barb Length (mm) | Barb Width (mm) | Barb spacing (mm) |
| BTO - 10 | 0.5 ± 0.05 | 2.5mm ± 0.1 | 10±1 | 13±1 | 26±1 |
| BTO - 12 | 0.5 ± 0.05 | 2.5mm ± 0.1 | 12±1 | 15±1 | 26±1 |
| BTO - 18 | 0.5 ± 0.05 | 2.5mm ± 0.1 | 18±1 | 15±1 | 33±1 |
| BTO - 22 | 0.5 ± 0.05 | 2.5mm ± 0.1 | 22±1 | 15±1 | 34±1 |
| BTO - 28 | 0.5 ± 0.05 | 2.5mm ± 0.1 | 28±1 | 15±1 | 45±1 |
| BTO - 30 | 0.5 ± 0.05 | 2.5mm ± 0.1 | 30±1 | 18±1 | 45±1 |
| CBT - 60 | 0.5 ± 0.05 | 2.5mm ± 0.1 | 60±2 | 32±1 | 100±2 |
| CBT - 65 | 0.5 ± 0.05 | 2.5mm ± 0.1 | 65±2 | 21±1 | 100±2 |
Customized Specifications
PVC coated barbed wire
2 twisted wires with 4 spikes, spaced 65 mm - 120 mm apart from each other.
Inside wire: galvanized wire.
PVC coating thickness: 0.4 mm - 0.6 mm.
Twisted wire diameter:
Inside wire diameter: 2.4 mm - 2.6 mm.
Outside wire diameter: 3.0 mm.
Thorns /Barbs wire diameter: 1.5 mm
Package: 250 m, to 400 m/coil or 30-50 kg/coil.

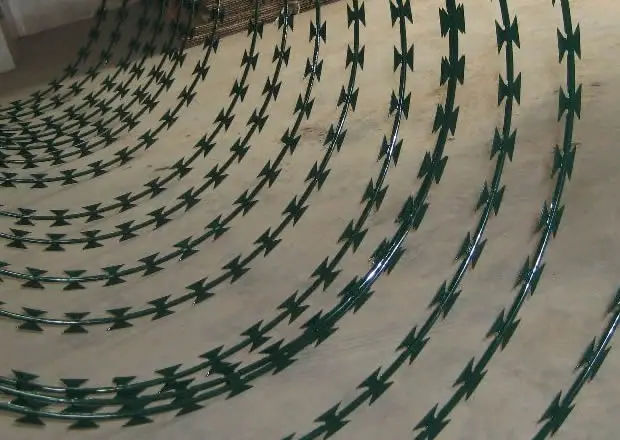

BTO-22 green powder coated concertina razor barbed wire
Hot Dipped Galvanized PVC Coated BTO12 BTO22 CBT65 Razor Wire-Stainless Steel Razor Blade Barbed Wire
Concertina razor tape, Hot Dipped Galvanized ,PVC Coated
Ø750mm, High Tensile Core wire diameter: 2.5 mm 900N/mm2 or MPa Coating: HDG Min 100g/m2, BTO-22, blade 0.5 mm thick, HDG Min 100g/m2
56 loops, 3 clips, approx. 11.4kg/roll
Ø960mm, High Tensile Core wire diameter: 2.5 mm 900N/mm2 or MPa Coating: HDG Min100g/m2, BTO-22, blade 0.5 mm thick, HDG Min 100g/m2
5 clips, approx. 15kg/roll
High Quality Water Proof Packing is Required
CBT-65 Concertina razor wire, hot dipped galvanized cross type 6 meters,PVC coated BWG 10
Wire mesh hot dipped galvanized BWG 10, 10.5, 11 AND 13.5 and pvc coated BWG 10 , both with openings of 50, 60 and 70 mm.
Thick Wire galvanized different diameters in mm, 1.65, 2.11, 3.05, 3.40, 3,76
Thin wire galvanized diameter in mm 1.37
Round Tubes 6cm and 4cm diameter, both 0.90 thickness and 6.6M long.
